River Irrawaddy
The main river in Burma, the Irrawaddy flows southwards from the Burmese interior to the Indian Ocean where it forms a large delta . The delta area had come under British rule in 1852 following the second Anglo-Burmese war and the interior followed suit after a third conflict in 1885 (during which the entire Irrawaddy Flotilla fleet was requisitioned by the British military).
The Irrawaddy Flotilla and Burmese Steam Navigation Company was founded in 1865 by Scotsmen Robert Findlay, owner of a teak logging company and Peter Denny of the family-owned shipbuilders in Dumbarton and five other businessmen after receiving an exclusive government contract for the carriage of troops, mails and other cargoes between Rangoon and Mandalay. The operation began with four paddle steamers which has been used in India before seeing service in the second Anglo-Burmese war. The company was registered in Glasgow (UK) and managed by P Henderson & Co (two directors of which were founding shareholders in the Flotilla Company). Todd, Findlay & Co were the local agents.
The first paddle steamer received was the Bassein, built by Barclay, Curle of Glasgow in 1865
The next newly built paddle steamers for the company was Colonel Phayre which arrived from A&J Inglis yard in Glasgow, Scotland in 1866 for assembly at the company's Dalla shipyard . This vessel remained in the fleet until 1876 and saw ten years of subsequent service in Malaya. This was followed by Colonel Fytche, from Archibald Denny of Dumbarton, Scotland. Both ships were needed as the company obtained contracts to serve deeper into the Burmese hinterland
Robert Duncan & Co of Port Glasgow, UK, then became the preferred shipyard and delivered the following side-wheelers to the company :
Mandalay (1869-In
1876 the company was reincorporated as the Irrawaddy Flotilla Company
with a fleet of thirteen paddle steamers and embarked on further
expansion. The Dumbarton firm of William Denny & Brothers
became their regular vessel supplier, primarily of side-wheel paddle
steamers, although there were also some stern/quarter-wheelers
The First World War wreaked havoc on the fleet. A number of river paddlers were requisitioned
for use by the British army in Mesopotania (current day Iraq) on the Tigris
and Euphrates rivers. Some failed to complete the treacherous sea voyage - others
were lost in operations or, if they survived hostilities, remained in Mesopotamia.
The Irrawaddy Flotilla fleet suffered probably the greatest ever attrition of any shipping company as the entire fleet of paddle steamers and associated barges and lighters numbering around 600 units was scuttled in Burmese waters during a short period in May 1942 to prevent them falling into the hands of the advancing Japanese army (and to obstruct Japanese river navigation) during World War II.
A number of vessels were recovered and restored after the war, but with most remaining in governement hands, a programme of new-building was embarked upon
The Burma Inland Water Transport Board, took over what remained of the Irrawaddy Flotilla Company in 1948 after independence and nationalisation of major foreign-owned assets in Burma and the company was would up in 1950. The Irrawaddy Flotilla name was revived as a private venture in 1995 by Scottish publishing entrepreneur and Burma-enthusiast Paul Strachan and it now provides luxury river cruises, trading as Pandaw after the paddler Pandaw, the remains of which were discovered by Strachan in 1998. The new fleet of luxury Pandaws are based on the design of the Pandaw of 1947 and earlier Flotilla steamer classes, albeit without paddle wheels or steam engines, rather than the "modern" Irrawaddy Princess which Strachan first promoted in 1995.
Paddle Steamers built by Wm Denny & Bros. of Dumbarton for Burma (1877-1947)
Name |
Built |
Yard No |
Length (feet) |
Breadth (feet) |
Scrapped etc |
Engine-Specifications |
Notes |
|
|
|
|
|
|
|
|
Doowoon |
1877 |
202 |
248.7 |
30.3 |
1895 - broken up |
CD 34 and 59 in x 54 in |
|
Yankeentoun | 1878 | 201 | 250 | 30 | 1891 - fire | CD 34 and 59 in x 54 in | |
Thambyadine |
1879 |
228 |
160.2 |
24 |
1924 - broken up |
|
|
Pulu |
1879 |
229 |
160.2 |
24 |
1896 - sunk |
Engine recovered and used in PS Amherst |
|
Palow |
1879 |
230 |
160.4 |
26 |
1924 - broken up |
|
|

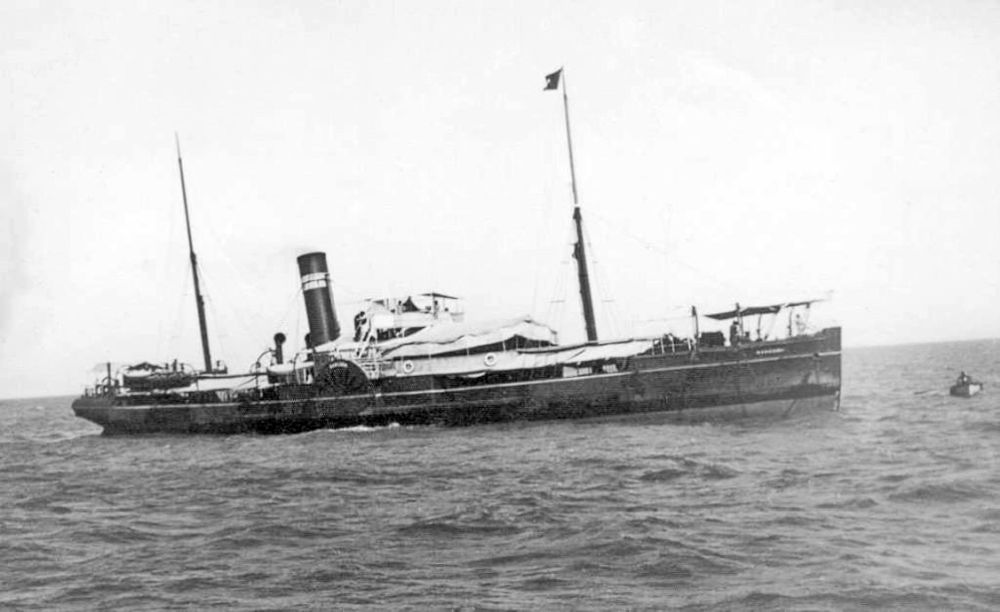

Rangoon |
1879 |
227 |
250 |
30 |
1938 |
|
|
Thooreah |
1880 |
244 |
257 |
34 |
1887 - wrecked |
|
|
Kay-Byoo |
1882 |
266 |
|
|
|
STERNWHEELER |
|
Nyoung-Don |
1885 |
309 |
105 |
18.5 |
1935 - broken up |
1913 - served on River Duga until 1924 as "Yandoon". Survived as floating post office until 1935 |
|
Aphyouk |
1885 |
308 |
195 |
18 |
1922 - hulk scuttled |
|
|
Yomah |
1885 |
303 |
310 |
40 |
1904 - lost to fire |
|
|
Amherst |
1885 |
301 |
160.5 |
24 |
1924 - scrapped |
|
|
Mindoon |
1885 |
301 |
310 |
40 |
1912 |
|
|
Pekin |
1886 |
342 |
250 |
35 |
1918 |
|
|
Momein |
1886 |
277 |
250 |
30 |
1930 |
|
|
Cambay |
1887 |
322 |
120.2 |
22 |
1924 - scrapped |
|
|
Dufferin |
1886 |
318 |
310 |
40 |
1913 |
|
|
Beeloo |
1886 |
319 |
310 |
40 |
1932 - Sunk in Pegu River |
|
|
Pouktan |
1886 |
321 |
120.2 |
22 |
1924 - broken up |
|
|
Hata |
1887 |
381 |
100 |
24 |
1914 - scrapped |
STERNWHEELER |
|
Daga |
1887 |
350 |
160 |
24 |
? |
Possibly scrapped in 1938 otherwise scuttled in 1942 |
|
Mandalay |
1887 |
345 |
250 |
30 |
1925 |
|
|
Canton |
1887 |
343 |
250 |
35 |
1911 |
|
|
Mogoung |
1887 |
344 |
180 |
30 |
1931 |
|
|
Munepoor |
1887 |
361 |
250 |
35 |
1920 - Hulked |
|
|
Ava |
1887 |
368 |
250 |
35 |
1902 - lost to fire |
|
|
Pago |
1887 |
367 |
250 |
35 |
1910 - sunk |
|
|
Manwyne |
1887 |
362 |
250 |
35 |
1912 |
|
|
Maulong |
1888 |
410 |
130 |
28 |
1907 - wrecked |
STERNWHEELER |
|
Tokio |
1901 |
657 |
145 |
25 |
1942 - scuttled |
|
|
Burma |
1901 |
656 |
310 |
46 |
1926 - Hulked |
|
|
Tarok |
1901 |
658 |
145 (later 174) |
25 |
1942 - scuttled |
|
|
Ava |
1902 |
674 |
230 |
35 |
1922 - scuttled |
|
|
Siam |
1903 |
705 |
328 |
46 |
1942 - scuttled |
Scuttled at Katha |
|
India |
1903 |
686 |
312 |
46 |
1942 - scuttled |
Scuttled at Magwe |
|
Katha |
1904 |
737 |
|
|
1937 - broken up |
STERNWHEELER |
|
Japan |
1904 |
739 |
328 |
46 |
1942 - scuttled |
Scuttled at Katha |
|
Java |
1904 |
733 |
328 |
46 |
1942 - scuttled |
Scuttled at Katha |
|
Prome |
1904 |
738 |
250 |
37 |
1936 - Hulked |
|
|
Ceylon |
1905 |
763 |
328 |
46 |
1942 - scuttled |
Scuttled at Mandalay |
|
Taping |
1907 |
820 |
253 |
32 |
1942 - scuttled |
Scuttled at Katha |
|
Tamu |
1908 |
858 |
100 |
24 |
1915 - sunk |
on tow to Basra (Iraq) |
|
Osaka |
1909 |
911 |
176 |
26 |
1939 |
|
|
Otaru |
1909 |
910 |
176 |
26 |
1942 - scuttled |
Scuttled at Mingyang |
|
Kabul |
1909 |
913 |
176 |
28 |
1942 - scuttled |
Scuttled at Katha |
|
Assam |
1909 |
879 |
328 |
46 |
1943 - sunk |
Bomb victim |
|
Kobe |
1909 |
836 |
176 |
28 |
1942 - scuttled |
Scuttled at Katha |
|
Kelat |
1909 |
912 |
176 |
28 |
1916 - sunk |
on tow to Basra |
|
Nepaul | 1909 | 894 | 329 | 46 | 1942 - scuttled | Scuttled at Katha | |
Mindoon |
1912 |
983 |
313 |
46 |
1942 - scuttled |
Scuttled at Kyoukmyaung |
|
Kandy |
1912 |
985 |
176 |
30 |
1942 - scuttled |
Scuttled at Katha |
|
Panthay |
1913 |
984 |
313 |
46 |
1942 - scuttled |
Scuttled near Mingoon |
|
Kentung |
1913 |
986 |
176 |
30 |
1942 - scuttled |
Scuttled at Katha |
|
Punjab |
1913 |
1001 |
313 |
46 |
1942 - scuttled |
Scuttled near Mingoon |
|
Kawlin |
1913 |
1004 |
186 |
30 |
1942 - scuttled |
Scuttled at Thabeitchyn |
|
Mysore |
1913 |
1000 |
313 |
46 |
1942 - scuttled |
Triple expansion 28, 41.5 and 60 in x 66 in |
Scuttled at Katha |
Talifoo |
1914 |
1019 |
269 |
40.1 |
1942 - scuttled |
Triples expansion 26, 40 and 60 in x 54 in |
Scuttled near Mandalay |
Shweli |
1914 |
1014 |
232 |
30 |
1915 - sunk |
Compound diagonal 18 and 36 in x 60 in |
en route to Basra |
Ananda |
1915 |
1020 |
311.4 |
46.1 |
1942 - scuttled |
Triple expansion 26, 40 and 64 in x 66 in |
Scuttled at Shenaga |
Kansi |
1916 |
1041 |
185 |
30 |
|
Compound diagonal 18 and 36 in x 60 in * |
* Thought to be a Hutson engine |
Kotah |
1916 |
1043 |
185 |
30 |
|
|
|
Kalan |
1916 |
1042 |
185 |
30 |
|
Compound diagonal 18 and 36 in x 60 in * |
* Thought to be a Hutson engine |
Kaladan |
1917 |
1061 |
185 |
30 |
1942 - sunk |
Compound diagonal 18 and 36 in x 60 in |
|
Shwelan |
1917 |
1058 |
232 |
30 |
1944 - sunk |
Compound diagonal 18 and 36 in x 60 in |
captured by Japan 1942, Bombed by British at Kanni 1944 |
Kandaw |
1917 |
1060 |
180 |
30 |
|
Compound diagonal 18 and 36 in x 60 in * |
* Thought to be a Hutson engine. Reengined locally with Denny engine in 1937 |
Koyan |
1917 |
1066 |
185 |
30 |
1942 - sunk |
Compound diagonal 18 and 36 in x 60 in |
|
Namtu |
1917 |
1081 |
100 |
26 |
1942 - sunk |
STERNWHEELER |
|
Kaduma |
1918 |
1075 |
185 |
30 |
|
Compound diagonal 18 and 36 in x 60 in |
Survived the war after capture by Japanese Army in 1942 |
Kinu |
1918 |
1076 |
185 |
30 |
1942 - sunk |
Compound diagonal 18 and 36 in x 60 in |
|
Kadeik |
1918 |
1065 |
185 |
30 |
1942 - sunk |
Compound diagonal 18 and 36 in x 60 in |
|
Minsin |
1920 |
1122 |
125 |
25 |
1942 - sunk |
Compound diagonal 13.5 and 24 in x 45 in |
|
Shwemyo |
1922 |
1152 |
233 |
30 |
1942 - scuttled |
Compound diagonal 18 and 36 in x 60 in |
Scuttled at Katha |
Sagamya | 1923 | 1154 | 185 | 32 | Triple Expansion 16, 25.5 and 41 in x 54 in | Sunk in 1942 but refloated in 1950 | |
Sinkan |
1923 |
1156 |
185 |
32 |
1942 - sunk |
Triple Expansion 16, 25.5 and 41 in x 54 in |
|
Samalouk |
1923 |
1155 |
185 |
32 |
1942 - sunk |
Triple Expansion 16, 25.5 and 41 in x 54 in |
|
Fano | 1924 | 1163 | 115 | 25 | 1942 - sunk | Cross-Compound 1cyl per shaft 13.5 and 26 in x 21 in | Twin vane wheels - converted to screw in 1926 |
Namsam |
1924 |
1166 |
125 |
25 |
|
Compound diagonal 13.5 and 24 in x 45 in |
Sunk in 1942 but refloated in 1950 |
Viking |
1928 |
1221 |
135 |
24 |
1942 - sunk |
Compound diagonal 18 and 32 in x 42 in |
Built for the GOVERNMENT of BURMA |
Maha |
1928 |
1215 |
200 |
32 |
1943 - sank |
Triple Expansion 16, 25.5 and 41 in x 54 in |
Captured by Japanese Army in 1942 and sunk by British |
Minlat | 1928 | 1214 | 200 | 32 | 1942 - sunk | Triple Expansion 16, 25.5 and 41 in x 54 in | |
Mingalay |
1928 |
1213 |
200 |
32 |
1942 - sunk |
Triple Expansion 16, 25.5 and 41 in x 54 in |
|
Popa |
1930 |
1253 |
132 |
34 |
1942 - sunk |
Compound diagonal 15 and 27 in x 54 in |
|
Tagaung |
1930 |
1251 |
195 |
32 |
|
Compound diagonal 22 and 43 in x 63 in |
Built for BURMESE RAILWAYS |
Sawbwa |
1937 |
1303 |
200 |
32 |
1942 - scuttled |
Triple Expansion 16, 25.5 and 41 in x 54 in |
|
Mingyi | 1947 | 1406 | 204.7 | 32 | Triple Expansion 16, 25.5 and 41 in x 54 in | ||
Maha |
1947 |
1407 |
204.7 |
32 |
|
Triple Expansion 16, 25.5 and 41 in x 54 in |
|
Mindon |
1947 |
1408 |
204.7 |
32 |
|
Triple Expansion 16, 25.5 and 41 in x 54 in |
|
Minnan |
1947 |
1409 |
204.7 |
32 |
|
Triple Expansion 16, 25.5 and 41 in x 54 in |
|
Source : Caledonian Maritime Research Trust database http://www.clydeships.co.uk -
with thanks to various contributors, primarily Stuart Cameron
Yarrow, Scotstoun, Glasgow (Deliveries 1946-1947)
Side-wheelers :
Minthamee, Minlat, Mingalay and Mintha were built in 1946/7 in a split order with Denny's
Minthamee survives as RV Myat Yadana
200ft x 32 ft : Engine - Triple Expansion 16, 25.5 and 41 in x 54 in
Note : Yarrow also delivered Stern-wheelers to the Irrawaddy Flotilla Company :
Tiddim (1908), Falam (1908), Popa (1909-1916), Sikkim (1914-1927 remaining in Mesopotamia after World War I), Pima (1915-1947 remaining in Mesopotamia after World War I as "Naftak"), Sarak (1917), Saga (1918), Sima (1918), Sinde (1919), Sythet (1920), Pauk (1920), Shillong (1920).
Yarrow also built RV Pandaw in 1947, believed to be stern-wheeled, but described as an "original colonial era twin-screw steamer" on the website of Paukan Cruises (trading name of the Ayravata Cruise Company) which bought Pandaw in 2003. This is probably as a result of conversion to screw propulsion undertaken after 1948, which appears to have been a commonplace procedure for the remaining examples from the historical fleet. She was renamed Paukan1947 in 2011 (but appears, in 2018, to be no longer advertised as in service) . She was originally restored in 1998 for a revived Irrawaddy Flotilla Company (www.pandaw.com), established by Paul Strachan (a Scot !) and offering luxury cruises for foreign tourists. She has formed a template for later new-builds which draw on the original K-Class ships of the 1880s and the P-Class ships of the 1940s, albeit as screw-driven motor ships, for the "Pandaw" company which has now extended its operations to Vietnam and Cambodia and which has the name Pandaw as a prefix for all its river vessels. The "Paukan" company has also built its newer vessels in the Pandaw style. The Paukan company names its ships "Paukan" with the suffix of its year of construction.The final deliveries were stern-wheel motor paddlers Pondaung, Padapyan, Padamya,
Padashin and Ponya in 1956.
As at 2020 : It is understood that at least one of these, Padashin, still survives but no longer as a paddler
Hanthawa (1909)
Tharrawa (1911-1924) : 130 x 22 ft : 182 GRT : Engine : Triple expansion diagonal 12, 19 and 31 in x 39 in by McKie & Baxter of Govan. Survived Mesopotamia
Galone (1911-1914) : 160 x 28.1 ft : 425 GRT. Engine : Triple expansion diagonal by McKie & Baxter of Govan. Requisitioned by the Royal Indian Marine and taken to Mesopotamia
Yemin (1911)
